High Grade Polyester Binder Yarn 1670 Dtex for Binding of SZ-stranded Optical Fibers
Product Description
POLYESTER BINDER YARN
Manufactured from first quality materials, our polyester binder yarns are primarily used for optical cable binding. They feature exceptional tenacity and minimal shrinkage. The yarn is wound on cardboard tubes under high pressure for compatibility with high-speed servers. Available in standard or low shrinkage variants, all polyester yarn is non-twisted.
We also offer DUAL form versions with two independent yarns wound on the same tube, effectively doubling your machine capacity.
Our binder yarns are continuously developed to meet evolving fiber optic cable design requirements. For modern compact cables with minimal tolerance for material shrinkage, we provide an ultra-low shrinkage polyester binder yarn option, including a swellable WB variant.
Available Colors: White, Red, Yellow, Black
Specifications
Standard & Low Shrinkage
| Weight (Denier) |
Linear Density (tex) |
Length Per Kilogram (m/kg) |
Breaking Strength (N) |
Elongation (%) |
Heat Shrinkage (177°C, 10min, pre-tension 0.05cN/dtex) (%) |
| 1000 |
1110 |
9000 |
≥65 |
≥13 (Standard yarn), ≥22(Low shrinkage yarn) |
4-6 (Standard Yarn), 0.5-1.5 (Low shrinkage yarn) |
| 1500 |
1660 |
6000 |
≥95 |
|
|
| 2000 |
2220 |
4500 |
≥125 |
|
|
| 3000 |
3330 |
3000 |
≥185 |
|
|
Dual Form
| Weight (Denier) |
Linear Density (tex) |
Length Per Kilogram (m/kg) |
Breaking Strength (N) |
Elongation (%) |
Heat Shrinkage (180°C, 10min) (%) |
| 2×1000 |
2x1110 |
9000 |
≥65 |
≥13 (Standard yarn), ≥22(Low shrinkage yarn) |
4-6 (Standard Yarn), 0.5-1.5 (Low shrinkage yarn) |
| 2x1500 |
2x1670 |
6000 |
≥95 |
|
|
| 2x2000 |
2x2220 |
4500 |
≥125 |
|
|
Values shown are for references only. For more accurate figures, please request technical data sheets.

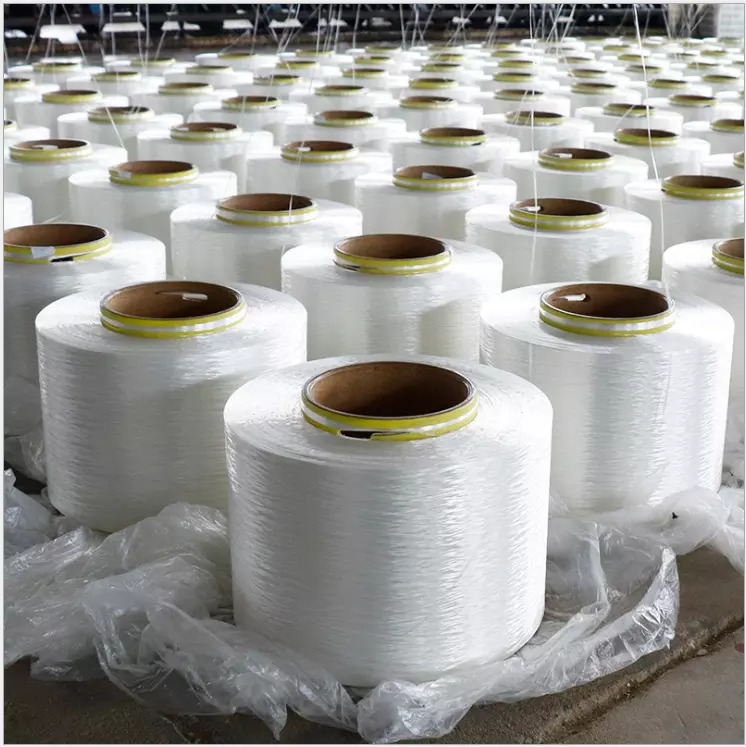

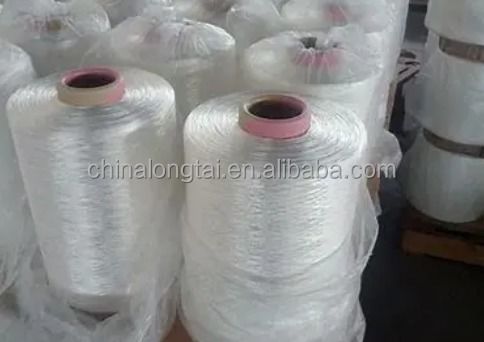

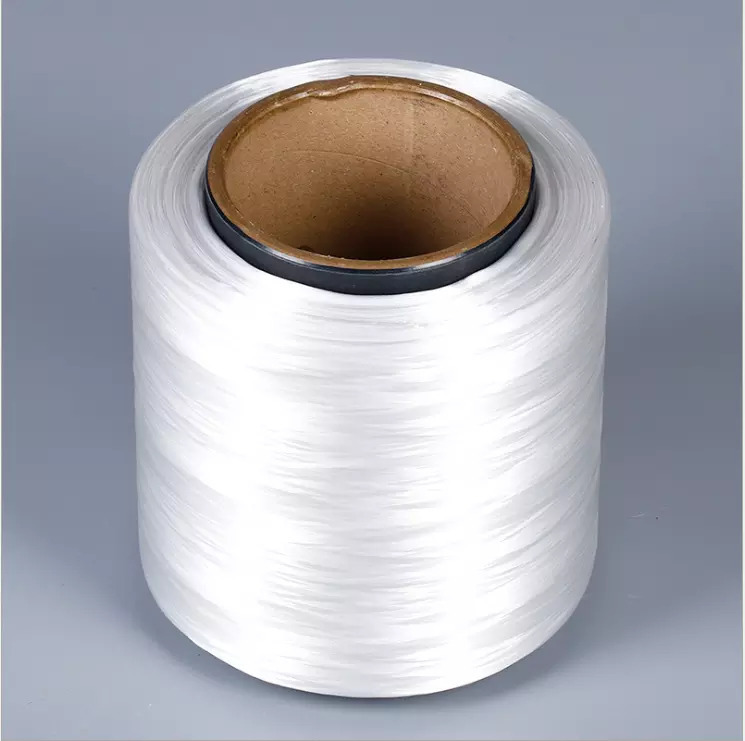

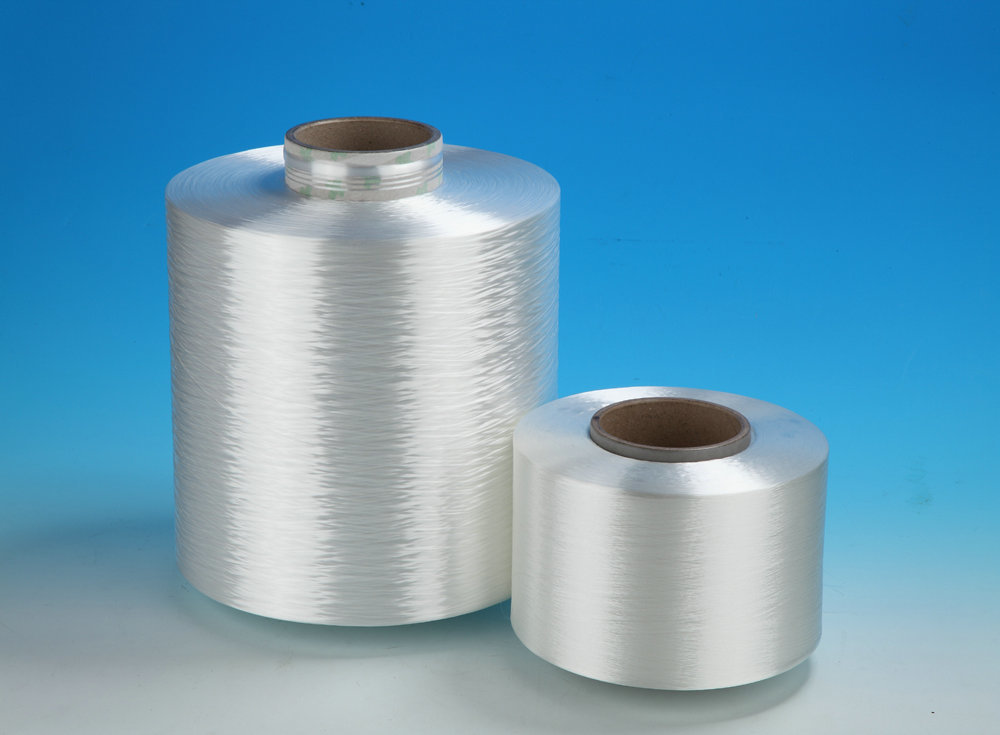

Product Images

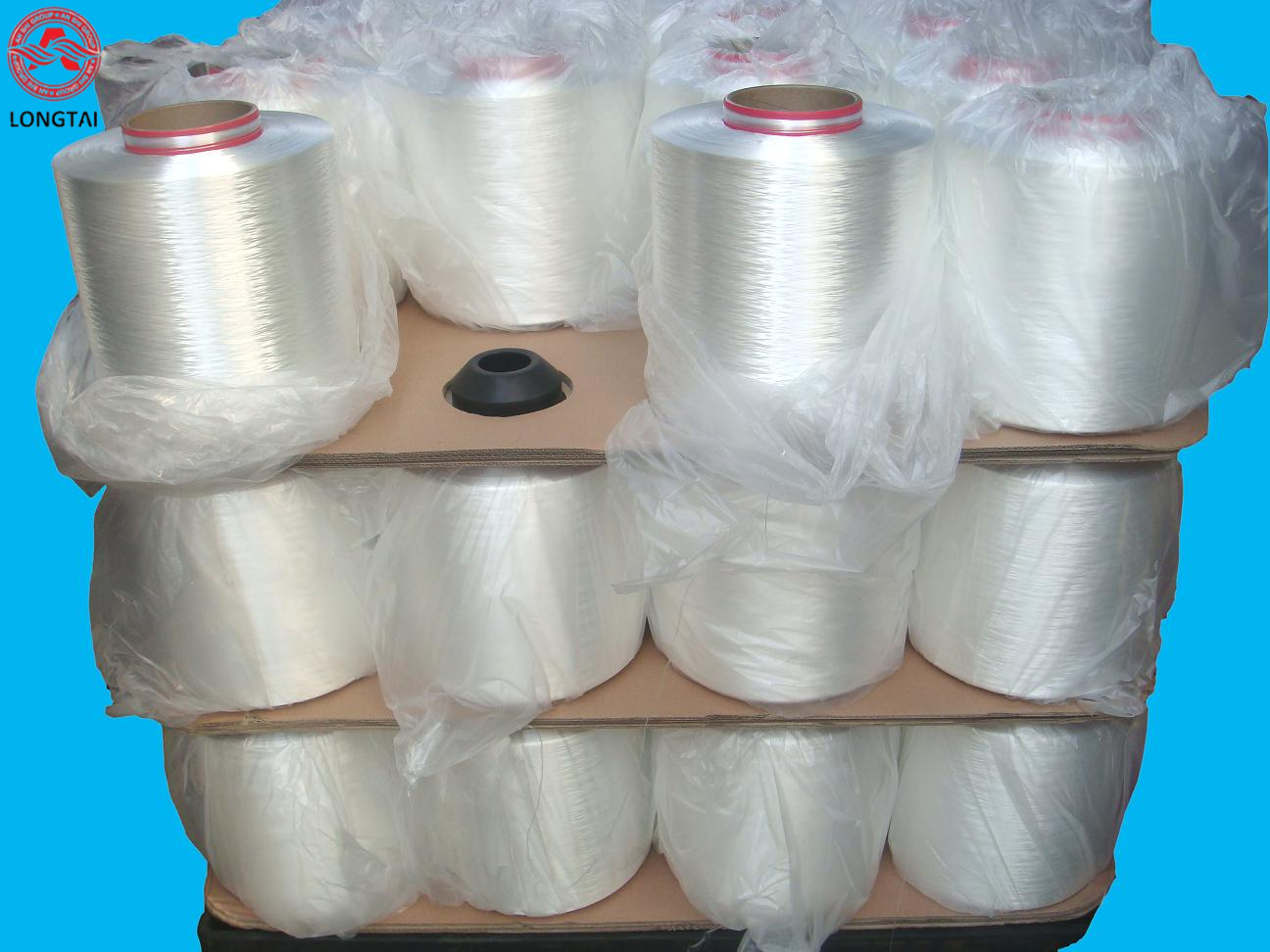

Packaging & Shipping
| Bobbin ID (mm) |
Bobbin Height (mm) |
Yarn OD (mm) |
Yarn Weight (kg) |
Core |
Standard: 95, 128
Optional: 52,76 |
Standard: 170, 185, 200, 215
Optional: 110, 285 |
200-250 |
2-6 |
Paper |
Application
Polyester Binder Yarn is specifically designed for high-speed binding of SZ-stranded optical fibers. Available in both Low Shrinkage (LS) and Ultra Low Shrinkage (ULS) versions to meet various application requirements.
Key Features
- High grade polyester construction
- Compatible with spool speeds exceeding 4000 rpm
- Dual-end versions available for increased efficiency
- Ultra low shrinkage version for precision applications
- Optimized for use in concentric binders
Frequently Asked Questions
Can we change it to our own logo?
Yes, we can customize the product with your logo and provide free design services.
What is your products' quality?
Our factory utilizes advanced conical cone machines to produce yarn with superior evenness and strength. We guarantee bulk orders will match sample quality exactly.
Can you offer samples?
We provide free samples, though shipping costs are the customer's responsibility.
Do you have after-sales service?
Yes, we offer comprehensive after-sales support and are available to address any questions.
How long can I get the price?
We provide quotations within 24 hours of receiving detailed inquiries.
Company Information
Jiangxi Longtai New Material Co., Ltd. was established in April 2002 and successfully listed on China's OTC market in October 2015 (Stock No. 836898). We specialize in developing and selling various New Materials, Wire & Cable Materials, and Agriculture Products.
Our monthly production capacity exceeds 1000 metric tons, with over 30% exported to Europe, America, Japan, Southeast Asia, and Africa. We maintain partnerships with numerous well-known domestic and international listed companies.
Our quality management system is ISO 9001:2008 certified, and all products meet environmental standards verified by SGS, including ROHS, REACH-SVHC, and Halogen Free requirements.
